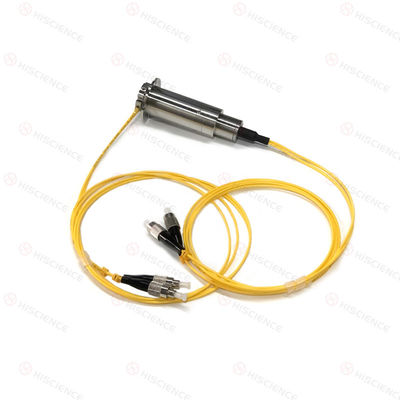

Hiscience Custom Fiber Optic Slip Rings Multi Circuits Fiber Rotary Joint

Products

Non Mercury Slip Ring

sales@3kmlink.com

+8618813988775

Contact Now

Hiscience Custom Fiber Optic Slip Rings Multi Circuits Fiber Rotary Joint

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	2-6 Weeks, Stock Available
Payment Method:	T/T
Supply Capacity:	300 PCS/Week, Stock Available

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen , China

Brand Name

Hiscience

Certification

Model Number

HF02I-FC001

Name:

Fiber Optic Slip Rings

Fiber Type:

Single Mode(9/125 μm)

NO.of Circuits:

N≤7According To Customer's Request

Wavelength Range:

780-1650(Default:1310& 1550 Nm)

Insertion Loss:

≤ 4.0dB

Insertion Loss Variations:

≤±1.0dB

Highlight:

Custom Fiber Optic Slip Rings

Fiber Optic Slip Rings Multi Circuits

Multi Circuits Fiber Rotary Joint

Product Description

Fiber Optic Slip Rings 2 to 7 Circuits of optical signals

Product Description:

Features:

Low insertion loss

Optical transmssion technology of multi- Circuit, no
electroma gnetic leakage and anti-elertromagnetic interference

leakage and anti-electromagnetic interference

Contactless signal transimission

Small size. suitable for small space

Typical application:

Semiconductor Manufacturing: Fiber optic slip rings are employed in semiconductor manufacturing equipment, enabling optical signal transmission in rotating stages, wafer handling systems, and inspection devices.

Communication Systems: Fiber optic slip rings are used in communication systems, such as undersea fiber optic cables and mobile communication towers, enabling optical signal transmission in rotating or vibrating components.

Food and Beverage Processing: Fiber optic slip rings find applications in food and beverage processing equipment, facilitating optical signal transmission for inspection systems, sorting machines, and packaging lines.

Options:

Number of optical Circuits

Wavelength range

Housing material

Fiber pigtail Connector type

Fiber connector typeST. LC

Installation modes

Specifications:

Technical Specifications
Fiber Type	Single Mode(9/125 μm)
NO.of Circuits	N≤7According to customer’s request
Wavelength Range	780-1650(Default:1310& 1550 nm)
Insertion Loss	≤ 4.0dB
Insertion Loss Variations	≤±1.0dB
Return Loss	>45dB
Optical crosstalk	≥70dB
Max. Optical Power	25dBm
Roating Speed	300rmp
Working Life	≥50 million (300 rpm)
Pulling Strength	≥75N
Working Temperature	-40~75℃
Storage Temperature	-45~85℃
Protection(IP Grade)	IP68
Housing Material	Stainless Steel
Connector Type	Default:FC/PC
Package Style	Pigtails on both ends, default. Φ3.0mm, 1.0 meters long
Vibration Standard	MIL-STD-167-1A
Mechanical shock	MIL-STD-810G

Drawing for HF02I-FC001:

Hiscience Custom Fiber Optic Slip Rings Multi Circuits Fiber Rotary Joint 1

FAQ:

Can fiber optic slip rings transmit both data and power signals?

No, fiber optic slip rings primarily transmit optical signals. Power transmission is typically handled separately through electrical slip rings or other power transmission methods.

Are fiber optic slip rings suitable for high-bandwidth data transmission?

Yes, fiber optic slip rings are well-suited for high-bandwidth data transmission due to the inherent advantages of fiber optics, such as high data rates, low signal loss, and immunity to electromagnetic interference.

Are fiber optic slip rings susceptible to signal loss over long distances?

Fiber optic slip rings have low signal loss characteristics, which means they can transmit signals over long distances without significant degradation. However, the overall transmission distance may still be limited by the specific fiber optic cables used.
