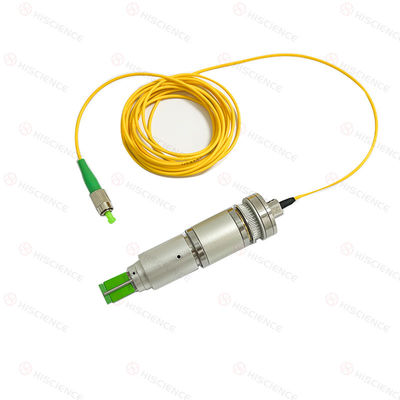

High Speed Fiber Slip Ring Single Channel Optical Slipring Design

Fiber Optic Slip Rings Single Channel Optical Signal High-Speed Type

Product Description:

Features:

• The fiber optic slip ring has high return loss, extremely low insertion loss, and operates at high speeds of tens of thousands of rotations per minute, even in extreme high and low temperatures.

• The fiber optic slip ring consists of 1 fiber channel and can be configured for either single-mode or multimode fibers. It enables non-contact transmission, eliminating wear and tear. As a result, it can withstand high rotational speeds and has an ultra-long lifespan. Currently, it is used in medical OCT systems

Typical application:

• Medical Systems: In medical equipment such as endoscopes or robotic surgical systems, fiber optic slip rings enable the transmission of high-resolution video signals, imaging data, or laser power across rotating components, without compromising the quality or integrity of the signals.

• Defense and Aerospace: Fiber optic slip rings are employed in defense and aerospace applications, such as surveillance systems, radars, or satellite communications, where the seamless transmission of optical signals across rotating interfaces is essential.

• Wind Turbines: In wind turbine systems, fiber optic slip rings are used to transmit signals from sensors, such as temperature or vibration sensors, mounted on rotating blades or the nacelle. This allows for condition monitoring, data acquisition, and control of the wind turbine system.

• Industrial Automation: Fiber optic slip rings are utilized in various industrial automation applications, such as automated assembly lines or rotary indexing tables. They enable the transmission of control signals, sensor data, or communication signals across rotating components, ensuring reliable and efficient operation.

Options:

Specifications:

Drawing for HSF01D-001:

FAQ:

Can fiber optic slip rings transmit multiple channels simultaneously?

Yes, fiber optic slip rings can transmit multiple channels simultaneously. They can accommodate multiple fibers, allowing for the transmission of multiple independent optical signals or different wavelengths on separate channels.

Are fiber optic slip rings compatible with different fiber types?

Yes, fiber optic slip rings can be designed to be compatible with different fiber types, such as single-mode or multimode fibers. The specific fiber type compatibility depends on the design and specifications of the slip ring.
