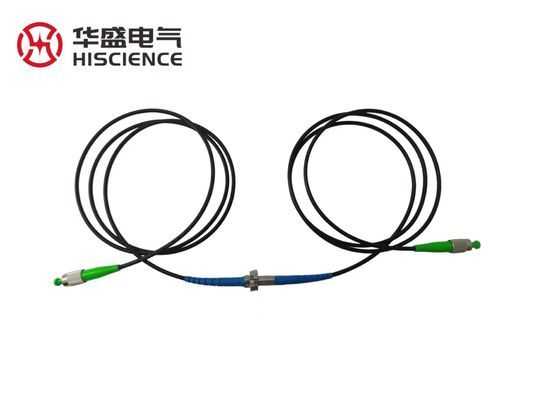

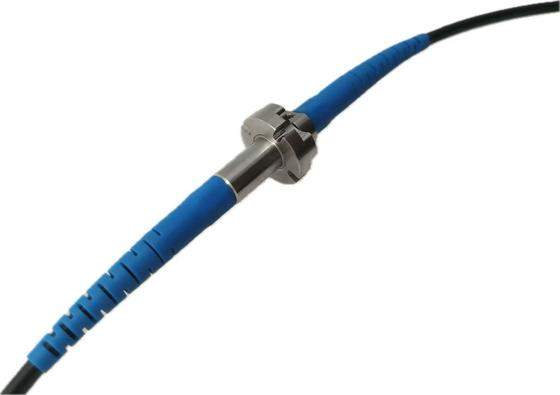

Single Channel Fiber Optic Slip Rings for Uninterrupted Optical Signal Transmission

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	2-6 Weeks, Stock Available
Payment Method:	T/T
Supply Capacity:	300 PCS/Week, Stock Available

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen , China

Brand Name

Hiscience

Certification

Model Number

HSF01G

Name:

Fiber Optic Slip Rings

Fiber Type:

Single Mode Optical Fibre

NO.Of Circuits:

Roating Speed:

0-1000RPM

Working Life:

30-50 Million Turns

Lead Length:

Rotor: 1000mm Stator: 1000mm

Product Description

Fiber Optic Slip Rings Single Channel Optical Signal

Product Description:

Precision Optical Communication: Designed for 360° continuous rotation, the HSF01G Series ensures uninterrupted transmission of optical signals, making it a critical component for systems that require precision communication while rotating.

High Durability for Long-Term Use: With a reference lifespan exceeding 50 million revolutions (≥5000W cycles), this slip ring is built for continuous-duty industrial systems where longevity and reliability are key.

Specifications:

**Light path parameters**
Fiber types	SM: G.657.A1
Channel number	1
Wavelength range	SM:1310/1550nm
Insertion loss	≤3dB
Insertion loss ripple	≤0.7dB
Bending radius	＞R25
Maximum speed	0-1000RPM
Working temperature	-40℃~+85°C
Estimated life cycle	30-50 million revolutions
Line length	≥1000mm
Connector types	FC/SC/ST/LC (PC or APC)

Drawing:

Single Channel Fiber Optic Slip Rings for Uninterrupted Optical Signal Transmission 0

FAQ:

Q: Can I customize the connector type for the HSF01G series?
A: Yes. We support customization of connector type (FC, LC, SC) and end-face (APC, PC) according to your system requirements.

Q: What is the maximum rotational speed supported by this slip ring?
A: The HSF01G supports up to 1000 RPM, ensuring high-speed rotation without signal interruption.
