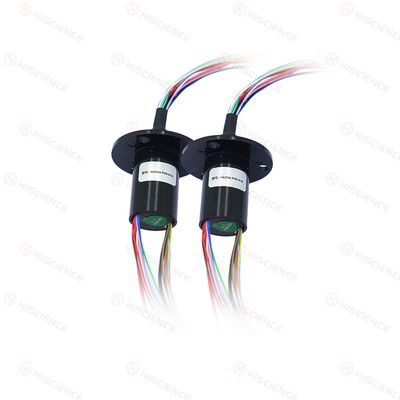

Multiple Circuits Capsule Slip Rings Smooth Rotation 0-300rpm Speed

Capsule Slip Rings 18 circuits 2A

Product Description:


Features:

• Multiple circuits: The slip ring features 18 independent circuits, providing ample capacity for the transmission of signals or power.

• 2A Current Rating: With a 2A current rating per circuit, the slip ring can handle moderate current requirements, ensuring reliable power transmission.

• Smooth Rotation: It enables smooth and continuous rotation, allowing for reliable signal and power transmission during rotational movements.

Typical Application:

• Antenna Systems: They find application in antenna systems, such as satellite communication systems, to transmit signals between the stationary equipment and the rotating antenna.

• Motion Control Systems: Capsule Slip Rings are utilized in motion control systems to transfer signals and power to rotating motors, encoders, and sensors.

• Indexing Turntables: They are employed in indexing turntables for assembly lines or material sorting systems to transfer signals and power as the turntable rotates.


Specifications:




Drawing for HC31918-B01:




FAQ:


Can a Capsule Slip Ring be used in explosive or hazardous environments?

Yes, certain Capsule Slip Rings are designed to meet the requirements of explosive or hazardous environments, including those with certifications for use in such environments.

Can a Capsule Slip Ring be used for high-speed data transmission?

Yes, Capsule Slip Ring can be designed to support high-speed data transmission, allowing for reliable communication in applications such as data acquisition systems or high-speed rotating cameras.

Can a Capsule Slip Ring be used in space applications?

Yes, some Capsule Slip Rings are designed for use in space applications, including satellites and space exploration missions, where reliable electrical transmission is required in the harsh conditions of space.
