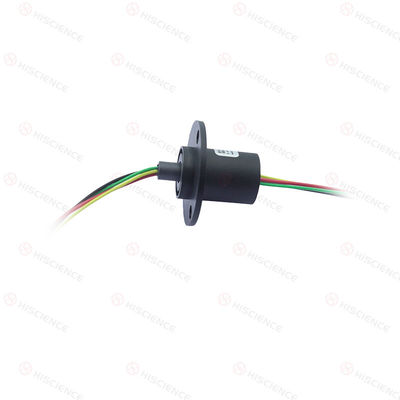

Custom Capsule Slip Rings Six Circuits 2A Current Rating Compact Design

Capsule Slip Rings 6 circuits 2A

Product Description:

Features:

• Six circuits: The cap slip ring is equipped with six circuits, providing multiple paths for signal and power transmission.

• 2A Current Rating: Rated at 2A per circuits, this slip ring can handle large amounts of current for reliable power transmission.

• Compact design: The slip rings are compactly designed for space-constrained installations or size-critical applications.

Typical Application:

• Indexing Turntables: They are employed in indexing turntables for assembly lines or material sorting systems to transfer signals and power as the turntable rotates.

• Inspection and Testing Equipment: Capsule Slip Rings find application in inspection and testing equipment, such as automated inspection machines, to transmit signals from rotating sensors or probes to stationary analysis systems.

• Communication Systems: They are used in communication systems, such as satellite ground stations, to transmit signals between the rotating dish antenna and the stationary equipment.

Specifications:

Drawing for HC1706-B01:

FAQ:

Can Capsule Slip Rings be used in high-altitude applications?

Capsule Slip Rings can be designed for high-altitude applications, with considerations for factors such as reduced air pressure, temperature variations, and altitude-specific environmental conditions.

Can Capsule Slip Rings be used in space applications?

Capsule Slip Rings can be designed for space applications, with considerations for factors such as vacuum sealing, radiation resistance, and extreme temperature variations encountered in space environments.

How do I select the right Capsule Slip Rings for my application?

To select the right Capsule Slip Rings, consider factors such as the number of circuits, current and voltage requirements, signal types, environmental conditions, and any specific customization needs. Consult with the manufacturer or supplier for guidance.
