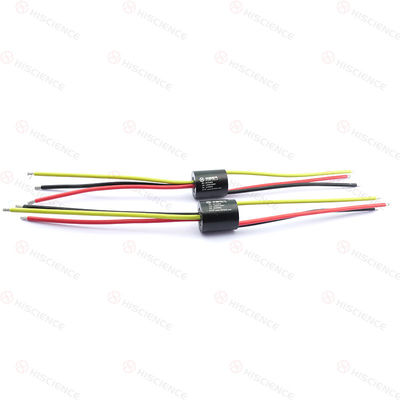

DIY electric skateboards (Esk8) capsule slip ring

MOQ:	1
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Shenzhen Hiscience Slipring

Certification

Model Number

HC25603(HS00230001)

Name:

Capsule Slip Rings

Circuits & Current:

3Circuits*30A

Lead Wire Size:

AWG12# Wire

Rating Voltage:

0-60VAC/VDC

Dielectric Strength:

≥100V@50Hz

Insulation Resistance:

50MΩ@100VDC

Highlight:

30A Capsule Slip Rings

3 Circuits Capsule Slip Rings

Compact Capsule Slip Rings

Product Description

Product Description:

Features:

3 independent circuits for transmitting power and data signals.
30A current rating per circuit to handle the power requirements of electric skateboards.
Compact and lightweight capsule design for easy installation on skateboard systems.
Durable construction with high-quality conductive materials for reliable long-term performance.

Typical Application:

Electric skateboards and hoverboards.(Esk8)
Robotic systems with rotating components.
Surveillance cameras and drones with pan-tilt-zoom functionality.
Industrial machinery and equipment with rotating parts.
Medical devices and rehabilitation equipment.

Specifications:

Electrical Parameter
Circuits & Current	3Circuits*30A
Lead Wire Size	AWG12# wire
Rating Voltage	0-60VAC/VDC
Dielectric Strength	≥100V@50Hz
Insulation Resistance	50MΩ@100VDC
Electrical Noise	≤35mΩ

Mechanical Parameter
Inner Diameter	/
Lead Wire Length	Stator:100mm Rotor:100mm
Working Speed	0~100rpm
Contact Material	Precious Metal
Housing Material	Aluminum Alloy
Protection(IP Grade)	IP44

Drawing for HC25603(HS00230001):

DIY electric skateboards (Esk8) capsule slip ring 1

FAQ:

Can these slip rings be used in outdoor environments?

Yes, the IP44 means these slip rings can withstand environmental factors like dust, moisture, and light water splashes, making them suitable for outdoor use on electric skateboards.

Is custom configuration available for these slip rings?

Yes, we offer customization options for the number of circuits, current ratings, physical dimensions, and other specifications to meet the unique requirements of each customer's application.
