1 Passage Customized Slip Rings 8 Circuits 10A 21 Circuits Signals Encoder Signal

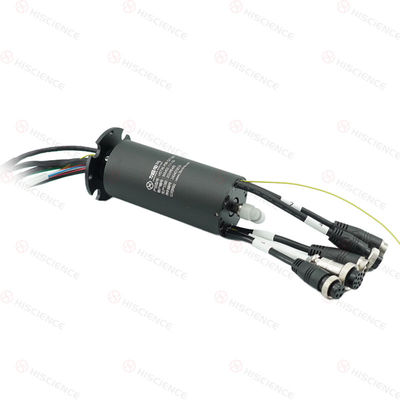

1 passage gas + Electric slip ring (8 circuits 10A 21 circuits signals, encoder signal)

Product Description:

Features:

• Gas and Electric Integration: This slip ring combines gas and electric transmission capabilities, providing a single rotating interface for simultaneous gas and electrical signal transfer. It offers a compact and efficient solution for applications requiring both gas and electrical connectivity.

• High Current Capacity: With 8 circuits capable of handling up to 10A current each, this slip ring can effectively transmit power to devices and equipment with higher current requirements. It ensures stable and efficient power supply in demanding industrial applications.

• Extensive Signal Transmission: The slip ring includes 21 circuits dedicated to signal transmission, allowing for the transfer of various types of signals. It can accommodate a wide range of signals, including analog, digital, and specialized signals such as encoder signals. It facilitates seamless communication between different components and systems.

Typical Application:

• Motion Control Systems: This slip ring is utilized in motion control systems, such as CNC machines, robotic arms, or rotary stages. It enables the transmission of power, control signals, and encoder signals, ensuring precise and accurate motion control for smooth operation and high-quality output.

• Test and Measurement Equipment: It is used in test and measurement equipment that requires rotating connections and encoder signal transmission. The slip ring facilitates the transmission of power, signals, and encoder feedback, enabling accurate and reliable data acquisition in testing and measurement applications.

• Medical and Laboratory Equipment: This slip ring finds application in medical and laboratory equipment, such as centrifuges, rotary mixers, or sample handling systems. It enables power transmission, signal communication, and gas supply to rotating components, ensuring smooth and efficient operation in medical and laboratory processes.

Specifications:

Drawing for HST30-P08-S21-G01(3KM02-111-01):

FAQ:

Can this slip ring handle higher current requirements in industrial applications?

Yes, this slip ring is designed with 8 circuits capable of transmitting up to 10A current each, making it suitable for applications that require power transmission to devices with higher power demands.

What types of signals can be transmitted through the 21 signal circuits of this slip ring?

The 21 signal circuits of this slip ring can transmit various types of signals, including analog, digital, and specialized signals such as encoder signals. It allows for versatile signal communication between different components and systems.

Can this slip ring handle gas transmission? What types of gases can be transferred?

Yes, this slip ring is equipped with a gas transmission circuit, enabling the transfer of gases such as air, nitrogen, or other compatible gases. The specific type of gas that can be transferred depends on the compatibility and design of the slip ring.
