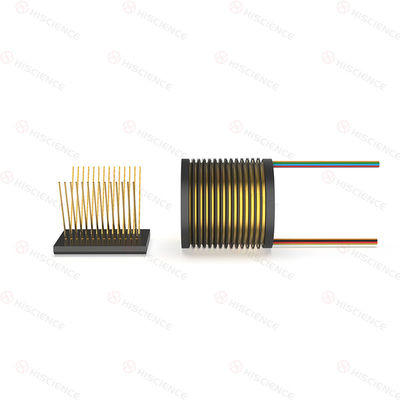

Electrical Separate Slip Rings 12 Circuits 10A For Automotive Testing

Separate Slip Rings12 circuits 10A

Product Description:

Features:

• 12 circuits: This Separate Slip Rings features 12 circuits, allowing for the simultaneous transmission of multiple power and signal channels, catering to the needs of complex systems.

• 10A current carrying capacity: Each circuit can handle a maximum current of 10A, providing a stable and reliable power transmission.

• High-quality performance: The Separate Slip Rings are designed to deliver high-quality performance, ensuring low electrical noise, minimal signal loss, and reliable connectivity.

Typical Application:

• Automotive Testing: Separate Slip Rings are utilized in automotive testing equipment to transmit power, signals, and data between rotating and stationary components for diagnostics and analysis.

• Indexing Turntables: Separate Slip Rings are used in indexing turntables for applications such as product sorting, assembly, and testing, providing power and signal transmission for precise indexing.

• Aerial Photography: Separate Slip Rings find application in aerial photography devices, such as gimbal systems, for continuous power and signal connections during rotational movements.

Specifications:

Drawing for HLS010-06:

FAQ:

What types of signals can separate conductive slip rings transmit?

Discrete conductive slip rings can carry a variety of signals including power, analog and digital signals, Ethernet, USB, HDMI and other custom signals.

What is the current carrying capacity of the separated conductive slip ring?

The current carrying capacity of individual slip rings may vary depending on the specific model, but typically the current range is from a few amps to hundreds of amps per circuit.

Can separate conductive slip rings transmit high frequency signals?

Yes, separate conductive slip rings can transmit high-frequency signals, but signal quality may be affected by factors such as rotational speed and the specific design of the slip ring.
