Customized Separate Slip Rings 16 Circuits 30A High Current Conductive
  • name

Customized Separate Slip Rings 16 Circuits 30A High Current Conductive

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 4-6 Weeks, Stock Available
Payment Method: T/T
Supply Capacity: 5000 PCS/ Month stock available
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen , China
Brand Name
Hiscience
Certification
ISO
Model Number
HTS100-1630
NAME:
Separate Slip Rings
Circuits:
16
Voltage:
380V
Current:
30A
Overall Dimensions （ID*OD*L）:
100*140*200mm
Rotating Speed:
0~350RPM
Working Temperature:
-40℃~+85℃
Work Humidity:
≤70% RH
IP Grade:
IP51
Working Life:
8,000,000 Turns
Highlight:

Customized Separate Slip Ring

,

Separate Slip Rings 16 Circuits

,

Separate Slip Rings 30A

Product Description

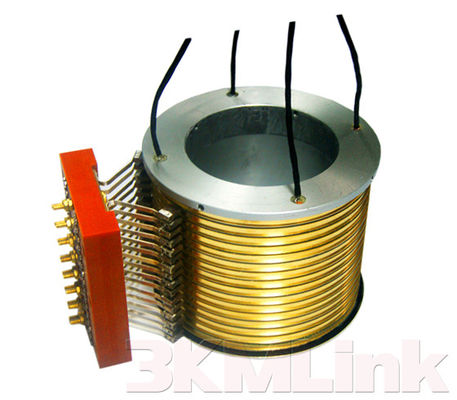

Separate Slip Rings/16 Circuits 30A High Current Conductive





Specifications:



Electrical

Circuits 16
Voltage 380V
Current 30A
Lead wire AWG28#Silver-plated teflon
Dynamic Resistance Fluctuation ≤10mΩ
Insulation Resistance ≥500MΩ@500VDC
Overall Dimensions (ID*OD*L) 100*140*200mm
Dielectric Strength ≥500V@50HZ,60S≤5mA
Lead wire length stator / rotor: 200mm

























Mechanical

Rotating Speed 0~350RPM
Working Temperature -40℃~+85℃
Work Humidity ≤70% RH
Contact Materia gold-gold
IP Grade IP51
Working life 8,000,000 turns

















Description:



Separate slip ring is the stator as the contact brush, the rotor as the conductive, gas, and fluid connection channel. The advantage of the separated slip ring is that it is flexible and simple, can better adapt to space constraints, and meet some specific installation requirements and special installation environments.Separate slip rings are widely used in industrial machine processing centers, rotating workbenches, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, surgical shadowless lights, robots, exhibition/display equipment, medical equipment,revolving door, etc.















Tags:

Customized Separate Slip Ring,

Standard Separate Slip Ring,

Separate Slip Ring In Stock
