Rotating platforms and rotary tables are widely used in industrial automation, packaging equipment, inspection systems, and other rotating applications. During continuous rotation, power, control signals, sensor signals, or data may need to be transferred between stationary and rotating parts.
A slip ring provides a rotary transmission interface that helps maintain these connections during continuous rotation. The suitable solution should be selected according to the mechanical structure, transmission requirements, rotation conditions, and operating environment.
1. Typical Application Scenarios

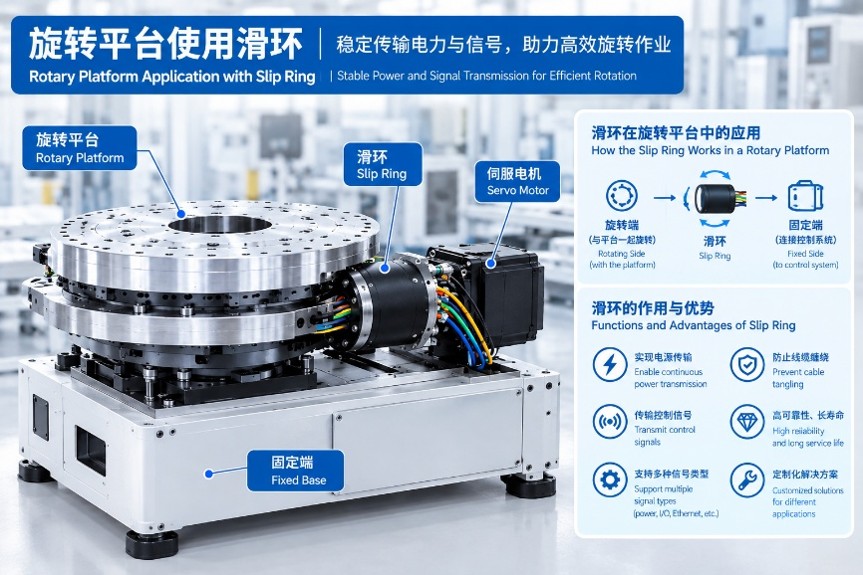

Common rotating platform applications include:
Rotary tables and indexing systems: Power and control signal transmission, with position feedback considered for some applications.
Packaging and automated equipment: Multiple circuits may be required for power, control, and sensor signals.
Inspection and intelligent equipment: Some systems may require data, sensor, or other specialized signal transmission.
The actual transmission requirements should be evaluated according to the equipment configuration.
2.Key Selection Criteria for Rotating Platform Slip Rings
Evaluation Dimension |
Selection Focus / Criteria |
Suitable Solution Direction |
Installation Space |
Central shaft, pneumatics, or cables pass through |
Through Bore Slip Ring |
Restricted axial (height) installation clearance |
Pancake Slip Ring |
|
Separated rotor/stator arrangement required |
Separated Slip Ring |
|
Transmission Type |
Power and standard control signals |
Industrial Slip Ring |
High-speed industrial fieldbus / data |
Bus Slip Ring |
|
Combined power + pneumatic / hydraulic lines |
Pneumatic‑Electrical & Hydraulic‑Electrical Integrated Solution |
|
Integrated Functions |
Real-time position, angle, or sensing feedback |
Slip Ring + Encoder / Sensor Integrated Solution |
3. Rotating Conditions and Environment
Before selecting a slip ring, the following conditions should also be confirmed:
Rotation speed and direction
Continuous or intermittent rotation
Operating temperature
Dust, moisture, and vibration
Required protection level
Available installation space
For applications requiring additional media transmission, pneumatic, hydraulic, fiber-optic, or RF integration may also need to be evaluated.
4.Hiscience Slip Ring Portfolio for Rotating Platforms
Based on the selection criteria outlined above, Huasheng offers both standard and customized rotary transmission solutions. You can view them at the following links:
View application scenarios: Slip rings for automated rotary systems
View product series: Slip Ring Product Center
Main Products & Integrated Solutions Include:
(1) Standard Series: Through Bore, Pancake, Separated, Bus, and High Current Slip Rings.
(2) Multi-Media Integrated Solutions: Electro-Optic, Pneumatic-Electrical, and Electrical & RF Integration.
5. Information Required Before Requesting a Quote
Contact Hiscience for a rotating-platform slip ring solution.
To help the Hiscience engineering team quickly evaluate and provide an optimal solution, please prepare the following details prior to inquiry:
(1) Mechanical Parameters: Available space (OD/length constraints), through-bore diameter, mounting style.
(2) Electrical & Signal Requirements: Number of circuits, rated current/voltage, signal types (e.g., RS485, EtherCAT, HD-video).
(3) Rotational Conditions: Rotational speed (RPM), direction, continuous vs. intermittent rotation.
(4) Operating Environment: Operating temperature range, IP rating requirements (IP54/IP65/IP68), dust/moisture/vibration levels.
(5) Special Requirements: Integration of encoders, pneumatic channels, hydraulics, or fiber optic joints.
(To request technical evaluations, 3D CAD models, or customized design solutions, please Contact Hiscience Team.)
