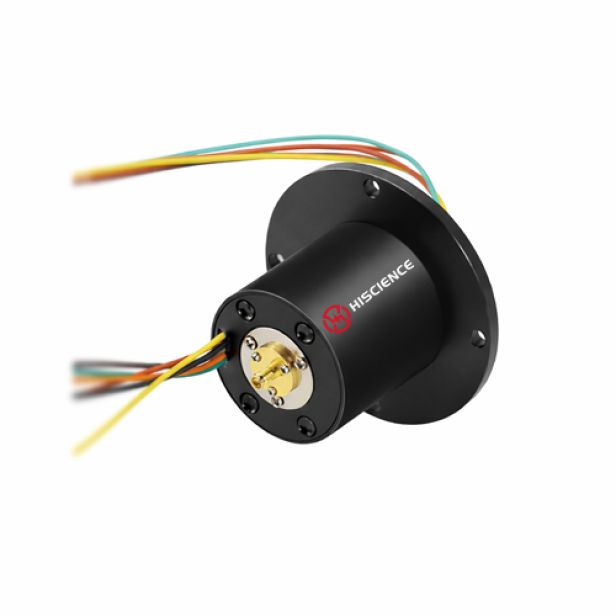

RF / HD + Electrical Integrated Slip Rings

RF / HD + electrical integrated slip rings combine high-frequency or high-definition signal transmission with electrical power circuits in one compact unit. They ensure stable signal integrity, low insertion loss, and reliable power transmission during continuous 360° rotation. This integrated design simplifies system structure and improves installation efficiency, making them widely used in radar systems, communication equipment, HD monitoring systems, and advanced industrial automation applications.

Learn more
Model_list
型号 内径 可混合电路数 频率范围 RF通道数 插入损耗(dB) PDF MORE
HT0299 / 108 DC–18 GHz 1 / / MORE
HR0186 / 108 DC–18 GHz 1 / / MORE
HR0178 / 108 DC–18 GHz 1 / / MORE
HR0156 / 108 DC–18 GHz 1 / / MORE
HHF108-S06 / 108 DC–18 GHz 1 / / MORE

View Related Solutions

Explore Hiscience related products and solutions to provide complete rotary transmission solutions for your applications.

View related supporting accessories

Explore related Hiscience slip ring products and integrated solutions designed to support reliable power, signal, and data transmission in a wide range of rotating systems. Our slip ring technologies are widely used in industrial automation, robotics, machinery, energy equipment, and other demanding applications. Discover complementary products that can help optimize the performance and reliability of your rotating equipment.

video_list

Hiscience slip rings

Looking for top-notch slip rings? You’ve come to the right place! Hiscience in Shenzhen, China, is your go-to source for high-quality, reliable slip rings. We’ve got you covered, whether you’re in industrial automation, medical equipment, aerospace, or anything in between.

Fiber optic slip ring and photoelectric slip ring notes

Pre-Use Tip for fiber optic slip rings and photoelectric slip rings This video shows a fiber optic end face magnified 400x, revealing dust particles that can affect performance. Always clean the end face before use to ensure optimal signal transmission and avoid insertion loss.

Hiscience Through Bore slip ring 1 circuit 20A

The Hiscience Through Bore Slip Ring 1 Circuit 20A delivers stable 20A power transmission for rotating systems. Its compact through-bore design enables easy integration with shafts and automation equipment, ensuring reliable performance and long service life.

Slip Ring Inspection and Packing Before Shipment

This video shows our pre-shipment inspection and packing process for slip rings. Before shipping, each slip ring is checked for appearance and basic electrical performance, then packed with protective materials to reduce the risk of damage during transportation. This process helps ensure that the slip rings arrive in good condition and are ready for use.

RF Slip Rings & Their Applications High-Frequency Signal Transmission

RF slip rings are critical components for systems that require continuous rotation and stable RF signal transmission. They ensure low signal loss, low VSWR, and reliable performance in demanding environments.
