In automated production lines, rotary tables, packaging machinery, and industrial robots, rotating components need to continuously transmit power, control signals, or data between stationary and rotating parts during 360° rotation. Selecting the appropriate slip ring is crucial for ensuring the stable, long-term operation of automation equipment.
1. Typical Application Scenarios & Transmission Needs
Different types of rotating automation equipment have distinct transmission requirements:

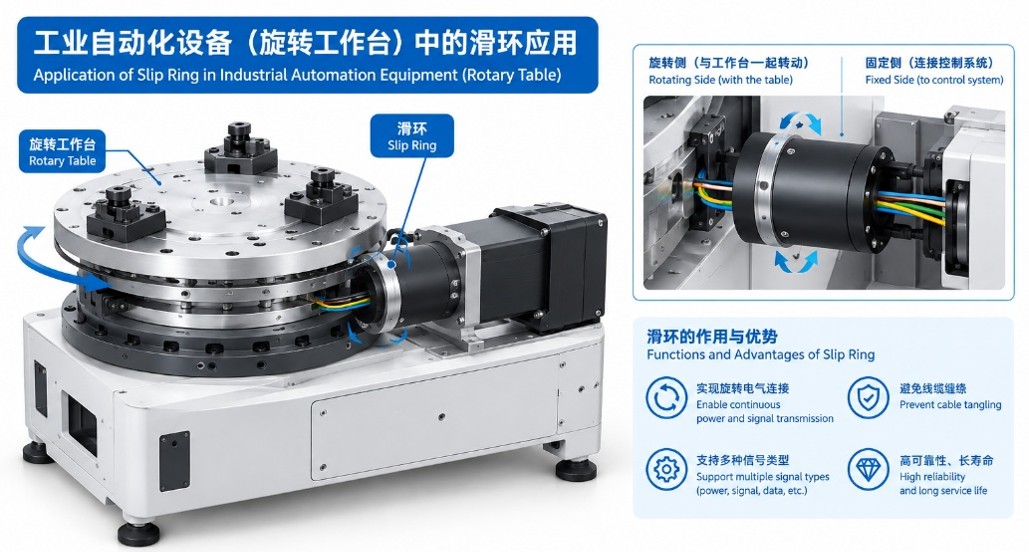

Rotary Tables & Indexing Systems: Require basic electrical power and control signals; high-precision setups may need position feedback integration.
Automated Production Lines & Packaging Machinery: Some equipment may require multi-channel transmission, potentially involving mixed transmission of power, sensor data, and pneumatic/hydraulic media, which should be evaluated based on specific equipment requirements.
Industrial Robotics & Intelligent Equipment: Some equipment may require high-frequency, high-throughput fieldbus data transmission (such as Industrial Ethernet), or integrated encoders to achieve real-time position sensing, which should be evaluated based on specific equipment requirements.
2. Key Selection Criteria for Industrial Automation Slip Rings
When evaluating slip ring solutions, consider the following key technical parameters:
Evaluation Dimension |
Selection Focus / Criteria |
Suitable Solution Direction |
Installation Space |
Central shaft or cabling passes through |
Through Bore Slip Ring |
Limited axial (height) space |
Pancake Slip Ring |
|
Complex structure requiring separated parts |
Separated Slip Ring |
|
Transmission Type |
Power and standard control signals |
Industrial Slip Ring |
High-speed industrial bus / data communication |
Bus Slip Ring |
|
HD Video, RF, or Optical Signals |
RF / HD / Fiber Optic Slip Ring |
|
Combined Power + Pneumatic/Hydraulic media |
Pneumatic‑Electrical & Hydraulic‑Electrical Integrated Solution |
|
Integrated Functions |
Real-time position or angle feedback |
Slip Ring + Encoder / Sensor Integrated Solution |
3. Hiscience Industrial Automation Slip Ring Portfolio
Based on the above criteria, Hiscience provides standard and custom rotary transmission solutions. You can explore full technical details via:
View Industry Applications: https://www.hslipring.com/portal/list/index.html?id=152
Explore Product Catalog: Industrial Slip Ring Center
Main Products & Integrated Solutions Include:
(1) Standard Series: Through Bore, Pancake, Separated, Bus, and High Current Slip Rings.
(2) Multi-Media Integrated Solutions: Electro-Optic, Pneumatic-Electrical, and Electrical & RF Integration.
4. Information Required Before Requesting a Solution / Quotation
To help the Hiscience engineering team quickly evaluate and provide an optimal solution, please prepare the following details prior to inquiry:
(1) Mechanical Parameters: Available space (OD/length constraints), through-bore diameter, mounting style.
(2) Electrical & Signal Requirements: Number of circuits, rated current/voltage, signal types (e.g., RS485, EtherCAT, HD-video).
(3) Rotational Conditions: Rotational speed (RPM), direction, continuous vs. intermittent rotation.
(4) Operating Environment: Operating temperature range, IP rating requirements (IP54/IP65/IP68), dust/moisture/vibration levels.
(5) Special Requirements: Integration of encoders, pneumatic channels, hydraulics, or fiber optic joints.
(To request technical evaluations, 3D CAD models, or customized design solutions, please Contact Hiscience Team.)
