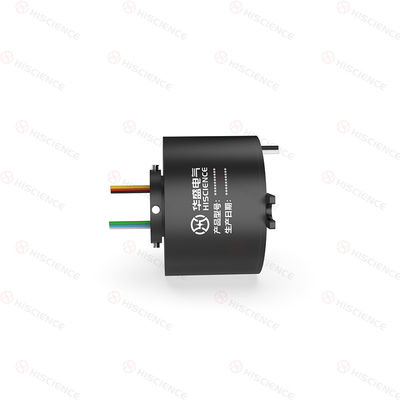

380V Through Bore Slip Rings Manufacturers 8 Circuits Signal 1 Circuits Shielded

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	4-6 Weeks, Stock Available
Payment Method:	T/T
Supply Capacity:	5000 PCS/Week, Stock Available

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Hiscience

Certification

Model Number

HT1256-P1205-S08-G01

Name:

Through Bore Slip Rings Manufacturers

NO.of Circuits:

12 / 5 A 8 Circuits Signal 1 Circuits Shielded

Lead Wire Size:

AWG 22# Teflon Insulated Eight-core Twisted Shielded Wire(2mm²)

Voltage:

380VAC/ DC

Dielectric Strength:

≥500V@50Hz

Insulation Resistance:

500MQ@500VDC

Highlight:

380V Through Bore Slip Rings

Through Bore Slip Rings Manufacturers

Product Description

Through Bore Slip Rings 12 circuits 5 A 8 circuits signal 1 circuits shielded Hole Size 12.7mm

Product Description:

Features:

Multiple Circuits: The Through Bore Slip Rings are equipped with 12 circuits, allowing for the transmission of multiple signals or power channels simultaneously. This feature provides versatile connectivity options for various applications.

Moderate Current Capacity: These slip rings have a moderate current capacity of 5A, making them suitable for applications that require reliable power transmission within a specified range.

Signal Transmission: In addition to the power circuits, these slip rings have 8 circuits dedicated to signal transmission. This extensive number of signal circuits provides enhanced connectivity for transmitting various signals, such as data, control signals, or feedback signals.

Typical Application:

Printing and Labeling Machines: These slip rings find applications in printing and labeling machines, facilitating power and signal transmission to rotating print heads, sensors, and control systems.

Mining Equipment: Through Bore Slip Rings are employed in mining equipment, enabling power and signal transmission to rotating components such as excavators, conveyor systems, and drilling equipment.

Oil and Gas Industry: These slip rings find applications in the oil and gas industry, including offshore drilling rigs and subsea equipment, facilitating power and signal transmission in demanding environments.

Specifications:

Electrical& Electronics
NO.of Circuits	12 / 5 A 8 circuits signal 1 circuits shielded
Lead Wire Size	AWG 22# Teflon Insulated Eight-core Twisted Shielded Wire(2mm² )
Voltage	380VAC/ DC
Dielectric Strength	≥500V@50Hz
Insulation Resistance	500MQ@500VDC
Dynamic Contact Resistance	≤10MΩ
Mechanical Parameter
Lead Length	Stator:300mm Rotor :300mm
Working Speed	0~200RPM
Working Humidity	≤70%RH
Working Temperature	-30℃～+70℃
Precious Metal	Precious Metal
Housing Material	Aluminum Alloy+Engineering Plastics
Other Parameter
Protection(IP Grade)	IP51

Drawing for HT1256-P1205-S08-G01:

380V Through Bore Slip Rings Manufacturers 8 Circuits Signal 1 Circuits Shielded 0

380V Through Bore Slip Rings Manufacturers 8 Circuits Signal 1 Circuits Shielded 1

FAQ:

How many circuits are available in these slip rings?

These slip rings have 12 circuits for power transmission and 8 circuits for signal transmission, allowing for the transmission of multiple signals or power channels simultaneously.

What is the current rating of these slip rings?

The current rating of these slip rings is 5A, making them suitable for applications that require reliable power transmission within a specified range.

How many circuits are dedicated to signal transmission?

These slip rings have 8 circuits dedicated to signal transmission, providing enhanced connectivity for transmitting various signals, such as data, control signals, or feedback signals.
