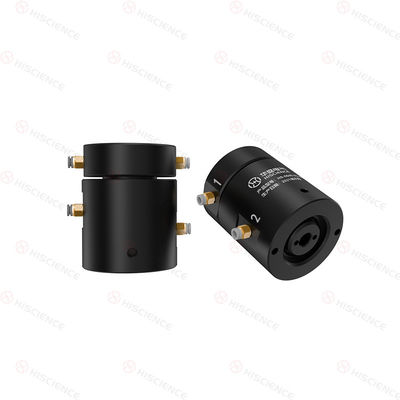

Low Friction Pneumatic Rotary Joints 2 Circuits M5 Ports Rotary Union Hydraulic

Low Friction Pneumatic Rotary Joints 2 Circuits M5 Ports Rotary Union Hydraulic

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 1-2 Weeks, Stock Available
Payment Method: T/T
Supply Capacity: 2000 PCS/Week, Stock Available
Detail Information
Place of Origin
Shenzhen , China
Brand Name
Hiscience
Certification
ISO
Model Number
HJ0640-02M5
Name:
Hydraulic Rotary Joints
NO.of Circuits:
2 Circuits
Connection Thread Size:
M5(4,6MM)
Pressure:
-100Kpa~1Mpa
Transmitting Media:
Compressed Air
Roating Speed:
0~200RPM
Highlight:

Low Friction Pneumatic Rotary Joints

,

Pneumatic Rotary Joints 2 Circuits

,

M5 Ports Rotary Union Hydraulic

Product Description

Hydraulic Rotary joints Pneumatic Rotary Joints 2 Circuits M5 ports



Product Description:



Features:



  • The Hydraulic/Pneumatic Rotary Joints with 2 circuits and M5 ports offer a versatile solution for fluid (hydraulic/pneumatic) transmission in rotating systems. With two circuits, these rotary joints allow for the simultaneous transfer of fluid media, enabling efficient and reliable operation.



  • The M5 ports provide convenient and secure connections for fluid lines, ensuring smooth and consistent flow within the system. The compact size of the M5 ports allows for easy integration into space-constrained environments.



  • The rotary joints feature low friction and resistance, minimizing energy loss during fluid transmission. This enhances overall system efficiency and performance.



Typical Application:



  • Packaging Machinery: Pneumatic/Hydraulic Slip Rings are used in packaging machinery to transmit pneumatic or hydraulic signals for controlling the movement of packaging materials, such as conveyors, sealing mechanisms, and labeling systems.



  • Robotic Arms: These slip rings find application in robotic arms, enabling the transmission of pneumatic or hydraulic signals for precise control of arm movements, grip mechanisms, and tool actuation.



  • Material Handling Systems: Pneumatic/Hydraulic Slip Rings are utilized in material handling systems, allowing the transmission of pneumatic or hydraulic signals for controlling lifting mechanisms, conveyors, and sorting devices.



Specifications:



Pneumatic Parameter
NO.of Circuits 2 Circuits
Connection Thread Size M5(4,6MM)
Pressure -100Kpa~1Mpa
Transmitting Media Compressed Air
Roating Speed 0~200RPM
Working Temperature -30℃~+70℃





Drawing for HJ0640-02M5:



Low Friction Pneumatic Rotary Joints 2 Circuits M5 Ports Rotary Union Hydraulic 0



                                              Low Friction Pneumatic Rotary Joints 2 Circuits M5 Ports Rotary Union Hydraulic 1





FAQ:



What is a hydraulic/pneumatic rotary joint?



A hydraulic/pneumatic rotary joint, also known as a rotary union or swivel joint, is a device that allows the transfer of fluid or gas from a stationary pipe or hose to a rotating component, enabling continuous flow during rotation.



What are the applications of hydraulic/pneumatic rotary joints?



Hydraulic/pneumatic rotary joints are commonly used in various industries and applications, including rotary index tables, rotary actuators, machine tool spindles, packaging machinery, printing presses, robotics, and many more. They enable the transfer of hydraulic or pneumatic power, coolant, air, or other fluids/gases to rotating equipment.





What are the benefits of using hydraulic/pneumatic rotary joints?



The benefits of hydraulic/pneumatic rotary joints include:



Continuous fluid/gas transfer during rotation.

Reduction in hose/tube wear and twisting.

Improved efficiency and reliability of rotating equipment.

Simplified installation and maintenance.

Ability to accommodate high pressures and speeds.

Enhanced sealing to prevent leaks and contamination.
