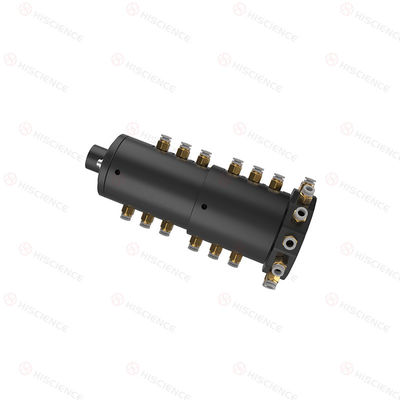

Pneumatic Rotary Unions 2 Passages 12 Circuits 2A Rotary Joint

Rotary Unions 2 Passages with 12 Circuits 2A

Product Description:

Features:

• Reliable Sealing: The Rotary Unions are equipped with high-quality seals that ensure reliable and leak-free operation, minimizing the risk of fluid loss or contamination.

• Compact Design: Despite accommodating multiple circuits, the Rotary Unions maintain a compact design, making them suitable for applications with limited space or tight installation requirements.

• High Flow Capacity: With each circuit capable of handling up to 2A current, the Rotary Unions offer a high flow capacity for efficient and uninterrupted fluid transfer.

Typical Application:

• Packaging Equipment: Electrical slip rings provide power and signal transfer for motorized conveyors, sensors, and actuators in packaging equipment, ensuring efficient and synchronized operations.

• Printing Machinery: Pneumatic slip rings transfer compressed air for inkjet printheads, pneumatic clamping systems, and other pneumatic components in printing machines.

• Surveillance Systems: Electrical slip rings are used in pan-tilt-zoom (PTZ) cameras, enabling continuous rotation and power transmission for surveillance applications.

Specifications:

Drawing for HK56-0201-P1202:

FAQ:

What types of media can Rotary Unions transfer?

Rotary Unions can transfer a wide range of media, including hydraulic fluids, water, air, steam, coolant, oil, gases, and other compatible liquids.

What are the advantages of using a Rotary Union?

The advantages of using a Rotary Union include the ability to transfer fluids under continuous rotation, sealing capabilities, multiple media transfer options, and compatibility with various applications.

How does a Rotary Union work?

A Rotary Union works by providing a rotating seal between the stationary and rotating parts, allowing for the transfer of fluid media through the media passage and ports.
