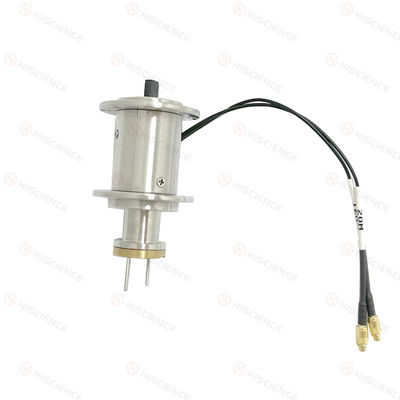

Hiscience 2 Channels RF Slip Rings Radio Frequency Rotary Joint IP40
  • name
  • name
  • name
  • name

Hiscience 2 Channels RF Slip Rings Radio Frequency Rotary Joint IP40

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 4-6 Weeks, Stock Available
Payment Method: T/T
Supply Capacity: 100 PCS/Week, Stock Available
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen , China
Brand Name
Hiscience
Certification
ISO
Model Number
HST03-S02-G01
Name:
RF Slip Rings
Circuits & Current:
2 Channels Of RF Signals
Lead Wire Size:
RF1.13 Coaxial Wire
Working Speed:
0~600rpm
Protection(IP Grade):
IP40
Contact Material:
Precious Metal
Highlight:

2 Channels RF Slip Rings

,

ISO Radio Frequency Rotary Joint

,

Radio Frequency Slip Ring IP40

Product Description

RF Slip Rings 2 channels of RF signals



Product Description:



Features:



This RF slip ring is capable of transmitting 12MHz and 20MHz RF signals with excellent impedance characteristics, making it suitable for use in medical ultrasound detection systems.



Typical application:



  • Radar Systems: RF slip rings find extensive use in radar systems for seamless transmission of RF signals between rotating and stationary components, enabling functions like target tracking and surveillance.



  • Communication Systems: They are employed in communication equipment, such as satellite communication systems, where reliable RF signal transmission is crucial for seamless data and voice communication.



  • Military and Defense: RF slip rings play a vital role in military applications, including military radars, electronic warfare systems, and communication systems used in defense operations.



  • Aerospace and Aviation: In aircraft and spacecraft, RF slip rings ensure uninterrupted transmission of RF signals for various applications, including antenna tracking systems, data links, and satellite communication.



Specifications:



Electrical & Electronics
Circuits & Current

2 channels of RF signals
Lead Wire Size RF1.13 Coaxial Wire
Voltage /
Dielectric Strength ≥400V@50HZ
Insulation Resistance ≥500MΩ@400VDC
Dynamic Contact Resistance ≤10MΩ
Mechanical Parameter
Lead Wire Length

Rotor: connection

Stator:130mm±10
Working Speed 0~600rpm
Protection(IP Grade) IP40
Working Temperature -20℃～+80℃
Contact Material Precious Metal
Housing Material Stainless Steel/Aluminum Alloy





Drawing for HST03-S02-G01:



Hiscience 2 Channels RF Slip Rings Radio Frequency Rotary Joint IP40 0



                                       Hiscience 2 Channels RF Slip Rings Radio Frequency Rotary Joint IP40 1







FAQ:

What is an RF slip ring?

An RF slip ring is a rotary electrical device that allows the transmission of radio frequency (RF) signals between a stationary and a rotating component.



How does an RF slip ring work?

An RF slip ring uses specialized conductive rings and brushes or contacts to establish electrical connections while allowing rotational movement.



What frequency range can an RF slip ring handle?

The frequency range of an RF slip ring depends on its design and specifications. Common ranges include DC to GHz frequencies.

Tags:

Radio Frequency Rotary Joint,

Radio Frequency Slip Ring,

RF Rotary Joints
