Description
Rotary Unions are essential 360-degree rotating devices that facilitate both physical and electrical connections. Hiscience offers G1/8"M5 interface standard products featuring 2, 4, 6, 8 gas passages and 6-24 circuits rotary unions. These units utilize high-quality contact and insulation materials, minimizing signal loss and interference to ensure precise and reliable transmission of signals. Such efficiency is critical for applications demanding accurate data, stable power connections, or precise control.
Drawing
Customization Options Description:
Working Speed：Adjustable to meet specific operational requirements
Number and Position of Gas Passages：Customizable to accommodate varying gas transmission needs
Port Specifications and Pipe Size of Gas Passages：Tailored to fit specific connector types and pipe diameters
Pressure：Adjustable to support different pressure ranges as required
Rating Voltage：Configurable to operate within specific voltage ratings
Working Temperature：Customizable to withstand temperatures suited to operational environments
Transmitting Media：Supports various media such as compressed air, industrial gases, etc
Number of Circuits：Configurable from a minimum to maximum circuit requirement，Power and Signal Type：Supports integration of power lines, signal lines, and different signal types.

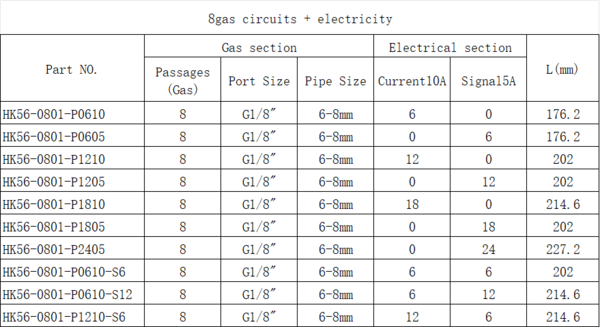

Integrated pneumatic circuit parameters
Integrated Electrical Slip Ring Parameters
Applications
The low torque pneumatic slip ring by Hiscience finds essential use in a variety of industrial applications, including：
Industrial automation equipment
Robots
Packaging machinery
Lithium battery manufacturing equipment
Chip mounting machines
Testing and detection equipment
