Description

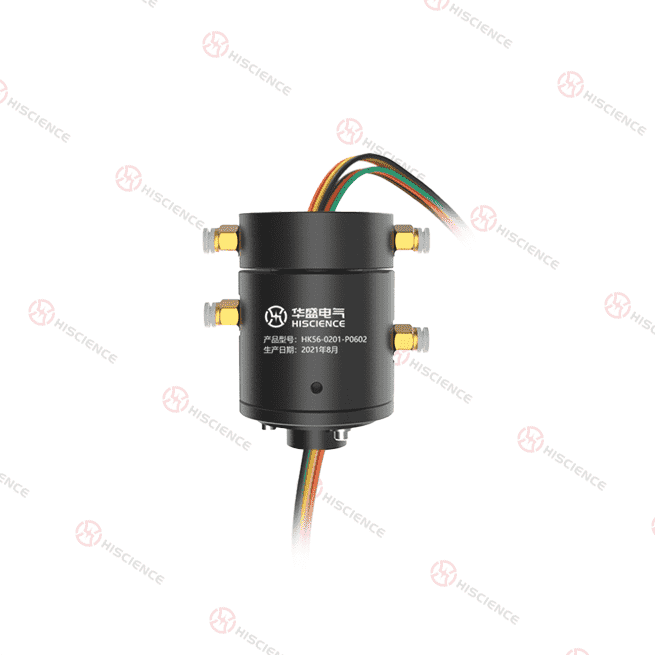

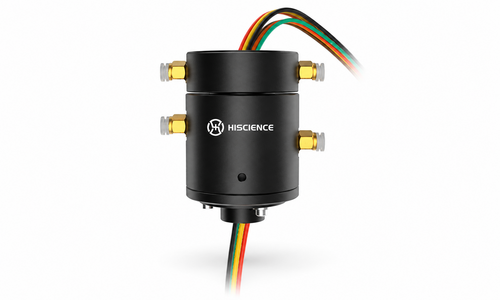

Rotary Unions are essential 360-degree rotating devices that facilitate both physical and electrical connections. Hiscience offers G1/8"M5 interface standard products featuring 2, 4, 6, 8 gas passages and 6-24 circuits rotary unions. These units utilize high-quality contact and insulation materials, minimizing signal loss and interference to ensure precise and reliable transmission of signals. Such efficiency is critical for applications demanding accurate data, stable power connections, or precise control.
Specifications
NO. of Circuits: 6 Circuits 2A & 2 passages
Connection Thread Size: G1/8”
Pressure: -100Kpa~1Mpa
Transmitting Media: Compressed Air
Roating Speed: 0~200RPM
Protection: IP51
Working Temperature: -30℃～+70℃

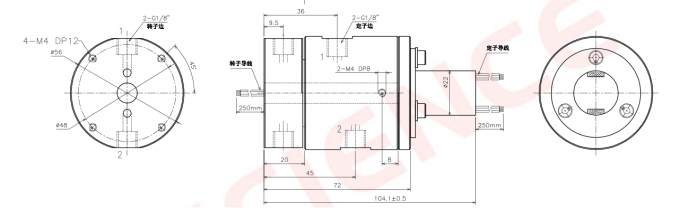

Drawing
Product Selection
Features
Low Torque: Starting torque as low as 0.01 N.m.
Rotational Torque: 5-10 times smaller than traditional pneumatic slip rings.
Maximum Speed: Up to 500 RPM,Lifespan: Over 20 million rotations.
Structural Design: Compact design capable of withstanding vacuum pressure from -100 kPa to 1 MPa.
Durability: Wear-resistant and corrosion-resistant materials ensure a long lifespan.Dual Protection: Features dual protection to
prevent air leakage.
Maintenance: Sealing components can be easily replaced and repaired, reducing costs.
Customization: Can simultaneously transmit power lines, signal lines, industrial buses, control lines, solenoid valves, and induction
lines, tailored to specific requirements.
Main Applications
Industrial automation systems
packaging equipment
chip mounting machines
robotic systems
testing apparatus
lithium battery production lines
high-end mobile phone assembly lines
laser systems
coating and separator machinery
packaging film equipment for soft pack
batteries
binding and laminating machines
electronic semiconductor manufacturing automation
Customizable Options
1、Working Speed：Adjustable to meet specific operational requirements
2、Number and Position of Gas Passages：Customizable to accommodate varying gas transmission needs
3、Port Specifications and Pipe Size of Gas Passages：Tailored to fit specific connector types and pipe diameters
4、Pressure：Adjustable to support different pressure ranges as required
5、Rating Voltage：Configurable to operate within specific voltage ratings
6、Working Temperature：Customizable to withstand temperatures suited to operational environments
7、Transmitting Media：Supports various media such as compressed air, industrial gases, etc
8、Number of Circuits：Configurable from a minimum to maximum circuit requirement，Power and Signal Type：Supports integration
of power lines, signal lines, and different signal types.
9、Lead Length：Adjustable to accommodate varying distances between components.Connection Terminals：Customizable based
on connector types and interface specifications.Housing Material and Color：Options available for selecting suitable materials
and colors.
