Description

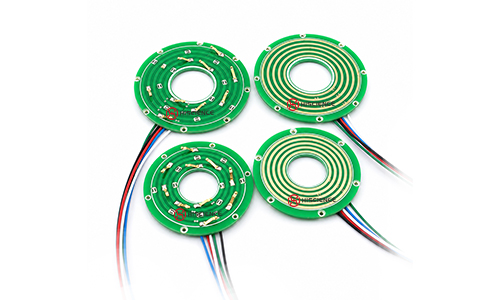

The HP25-P0210 Pancake slip rings are specifically designed to accommodate equipment with limited vertical space and the necessity for expanded lateral space, meeting the spatial requirements of specialized systems. These slip rings feature a low profile and large outer diameter, resembling a platter.
Specifications
No. of circuit: 2 circuits
Current: 10A
Working Speed: 0-300RPM
Contact Material: Precious Metal
Lead Wire Length: Stator / Rotor: 300mm
Protection Degree: IP51
Insulation Resistance:≥500MΩ@500VDC
Drawing
Features
1. Ultra-thin Design: Achieves a minimum thickness of 6.5mm, ideal for applications with limited space requirements
2. Fiber Brush Technology: Ensures reliable contact with extremely low friction and minimal contact resistance.
3. Eliminates friction debris, enhancing longevity and performance stability
4. Mixed Transmission Capability: Supports simultaneous transmission of precision signals and power supply, accommodating
5. diverse operational needs
Precious Metal Contacts: Spring piece contacts made from precious metals ensure high stability, reliability, and extended
service life.
Main Applications
Industrial machining centers
Rotating worktables
Heavy equipment turntables
Cable reels
Packaging equipment
Magnetic clutches
Process control equipment
Rotating sensor
Emergency lighting equipment
Robotics
Exhibition and display equipment
Medical devices
Revolving doors
Customizable Options
1、Working Temperature: Adjustable to meet specific operational requirements
2、Product Thickness: Tailored to fit dimensional constraints as specified by the customer
3、Lead Wire Length: Customizable to suit installation and connectivity needs
4、Rotating Speed: Adjustable to accommodate varying operational speeds as per customer specifications
5、Protection (IP Grade): Customizable ranging from IP50 to IP68 for ingress protection against dust and moisture
6、Shock Resistance Level: Conforms to MIL-SID-810E standards for robust shock resistance
7、Integration Capability: Can integrate multiple power supply lines, signal lines, industrial buses, control lines, solenoids, and induction lines as required by specific application needs.
