When selecting a slip ring, the primary step is to define what power and signals need to pass through the rotating interface. Key parameters include circuit count, rated current, working voltage, signal transmission types, communication protocols, and operating conditions. Defining these requirements clearly helps evaluate a suitable electrical configuration.
What Power Does the Slip Ring Need to Transmit?
For power transmission, customers should provide:
Number of power circuits: Total channels required for power delivery.
Current and voltage requirements: Rated current per circuit and operating voltage (AC or DC).
Operating mode: Continuous load vs. intermittent duty cycle.
These requirements help determine the electrical configuration of the slip ring.
What Signals or Data Need to Be Transmitted?
Different signal types demand tailored shielding, wiring, and internal routing to prevent crosstalk and noise interference. Please specify:
Control and sensor signals: Analog/digital signals, RS232/RS485, sensor feedback.
Industrial communication data: Ethernet, fieldbus protocols (subject to protocol validation).
High-frequency and optical data: Requirements for RF, HD video, or fiber optic transmission.
Different signal types may require different slip ring configurations.
What Other Information Is Needed?
Power and signal requirements alone are not sufficient for final product selection. Mechanical and environmental constraints must also be evaluated:
Category |
Information |
Mechanical |
Bore diameter, outer diameter constraints, axial space limits, mounting method |
Rotation |
Rotational speed (RPM), continuous vs. intermittent rotation, rotation direction |
Environment |
Operating temperature range, humidity, dust exposure, moisture, vibration levels |
Connection |
Connector types, cable length, flying lead orientation |
Drawings, photos, or wiring diagrams can help with technical evaluation.

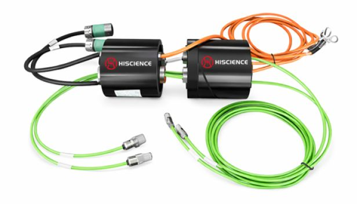

Related Hiscience Slip Ring Solutions
Hiscience provides standard and custom rotary transmission solutions tailored to different electrical and signal demands：
Industrial Slip Rings:General power and control signal transmission.
Through Bore Slip Rings:Central shaft clearance combined with power and signal circuits.
RF / HD Slip Rings:High-frequency and high-definition video data transmission.
Fiber Optic Slip Rings:Optical data transmission for long-distance/high-speed needs.
High Current Slip Rings:High-power delivery for heavy equipment.
Contact Hiscience
Before requesting a slip ring technical evaluation or quotation, please prepare:
Circuits + Current/Voltage + Signal Type + Dimensions + Rotation + Environment
Providing these details helps the technical team evaluate the application and recommend a suitable solution.
