Flange Stator Mounting for Capsule Slip Ring

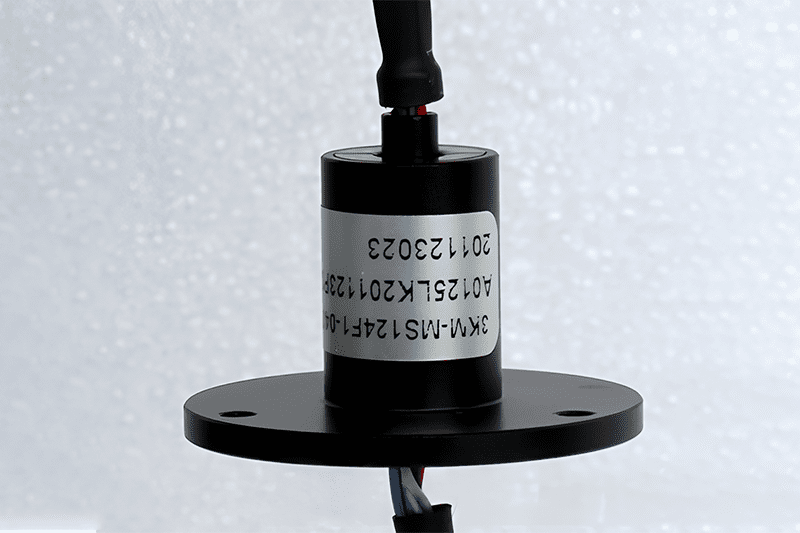

A capsule slip ring is a general term for slip rings whose housing is equipped with a circular flange. It is called a capsule slip ring because its appearance resembles a cap.

A slip ring consists of two main parts: a rotating part and a stationary part. The rotating part operates together with the rotating structure of the equipment and is referred to as the rotor, while the stationary part is connected to the fixed structure of the device and is called the stator.

In general, the inner ring of the slip ring functions as the rotor, and the outer ring functions as the stator. Slip rings are designed for bidirectional rotation, and there is no fundamental difference whether the outer ring or the inner ring rotates. Whether the outer ring serves as the rotor or the inner ring serves as the rotor mainly depends on the installation method of the slip ring.

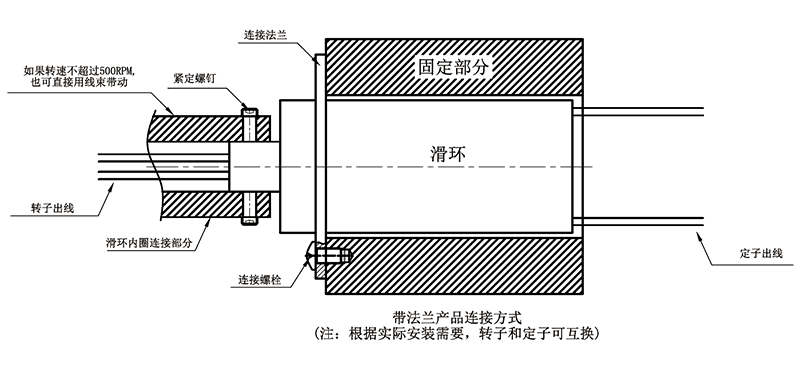

Flat Installation Diagram – Flange-Mounted Stator Capsule Slip Ring

未标题-1 拷贝.png

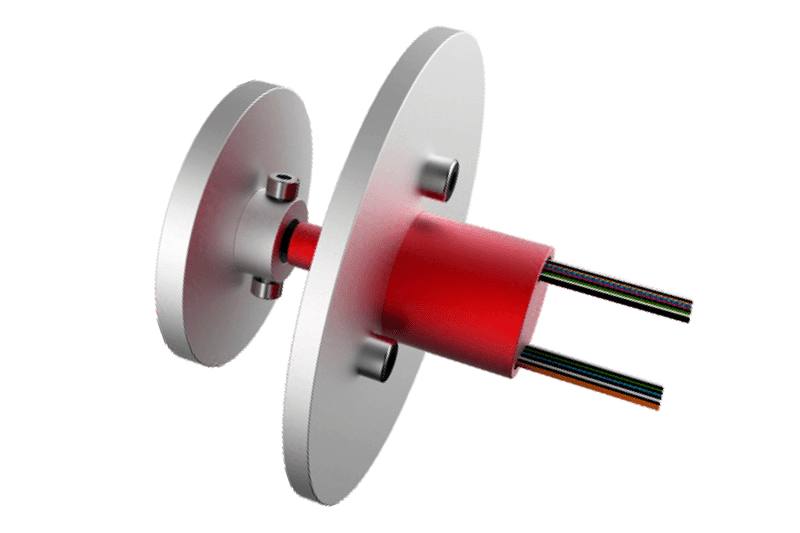

3D Installation Diagram – Flange-Mounted Stator Capsule Slip Ring

Installation Instructions for Capsule Slip Ring with Flange-Mounted Stator

1. Inner Ring Fixing

  • For miniature or compact slip rings, the inner ring can be driven directly by the cable and does not require additional fixing.

  • For larger slip rings with a stator flange, the inner ring should be fixed using set screws or a flat shaft (anti-rotation flat) to ensure stable operation.

2. Outer Ring Fixing

Fix the stator flange to the stationary mounting surface and secure it firmly using screws.

Installation Precautions

  1. The slip ring body should not bear any load other than its own weight. Objects exceeding 1 kg must not be mounted on the slip ring body. The lead wires should also not be subjected to external pulling forces.

  2. During installation, make sure to protect the lead wires carefully to avoid damage to the insulation layer, which could affect product performance and reliability.

  3. As a precision electrical component, the slip ring should operate in a dry and low-dust environment. If the working environment is harsh, additional protective measures should be taken.

  4. Ensure that the fastening nuts and screws of the fixed parts are properly tightened and do not become loose during operation.

  5. The stator wires should be kept away from the rotating shaft, and the rotor wires should be kept away from fixed structures to prevent the wires from being scratched or damaged during rotation.

  6. The stator and rotor of the slip ring can be interchanged according to actual requirements. Either side can rotate while the other remains stationary.
